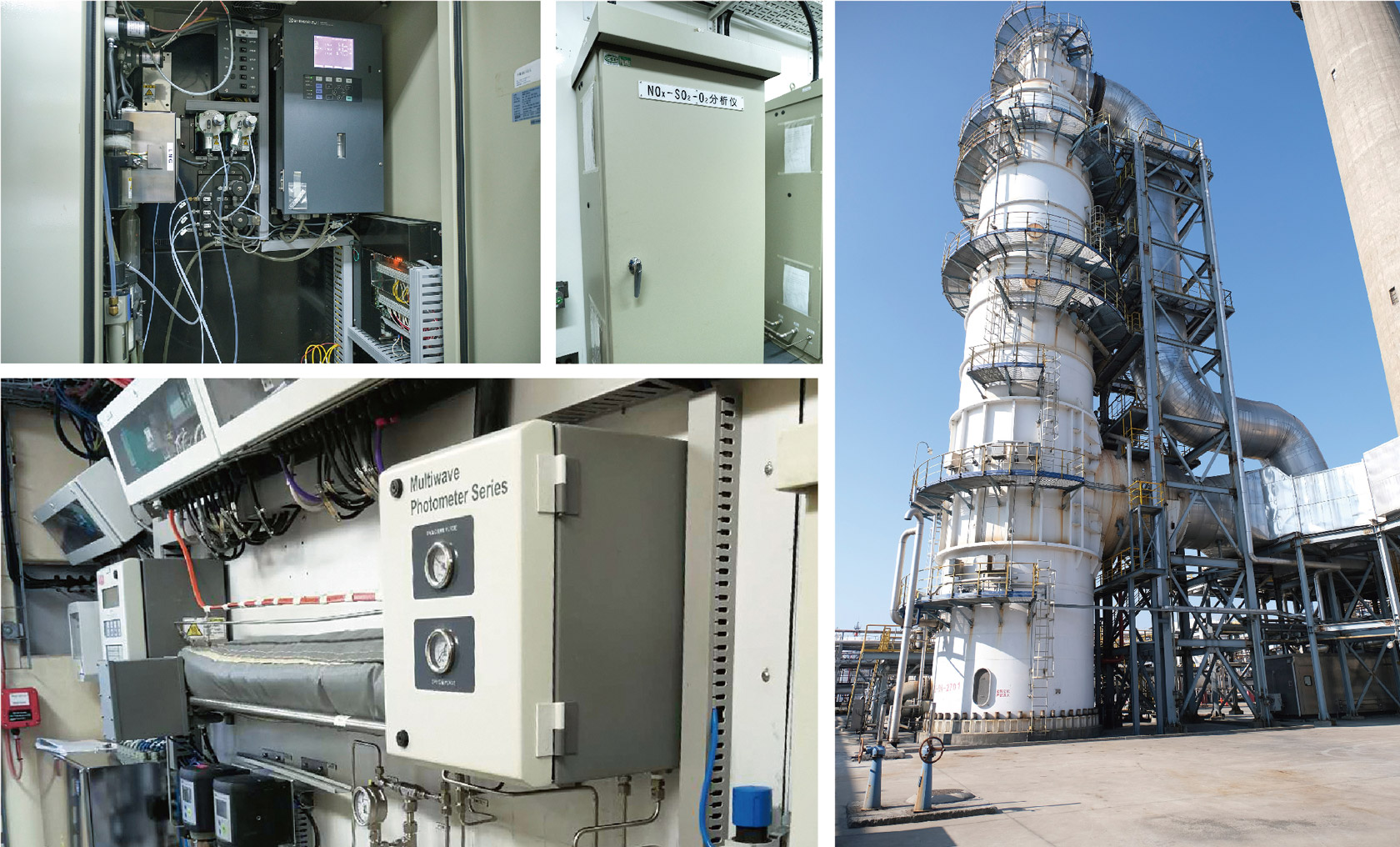

The analysis instrument and control unit are assembled in the cabin, and the sample pretreatment, carrier gas, standard gas and driving gas are installed outside the cabin. The sampling probe and the front decompression station are installed near the process pipeline. The distribution system is a pipeline system, equipped with explosion-proof distribution box, explosion-proof junction box and other electrical equipment. The lighting system adopts explosion-proof fluorescent lamp with explosion-proof emergency fluorescent lamp. The cabin is also equipped with ventilation, ventilation, regular ventilation. The cabin is also equipped with alarm interlocking panel and sound light alarm. In case of combustible / toxic gas leakage, the sound light alarm will give an alarm to protect personal safety.

分析小屋应用于炼油、化工、冶金、制药及轻工业等生产中，对各种过程气体在线分析仪及各种在线水质分析仪提供现场的安全安装空间及防护。适用于ⅡＡ～ⅡＢ级， T１～Ｔ４组爆炸性气体混合物的2区危险场所。

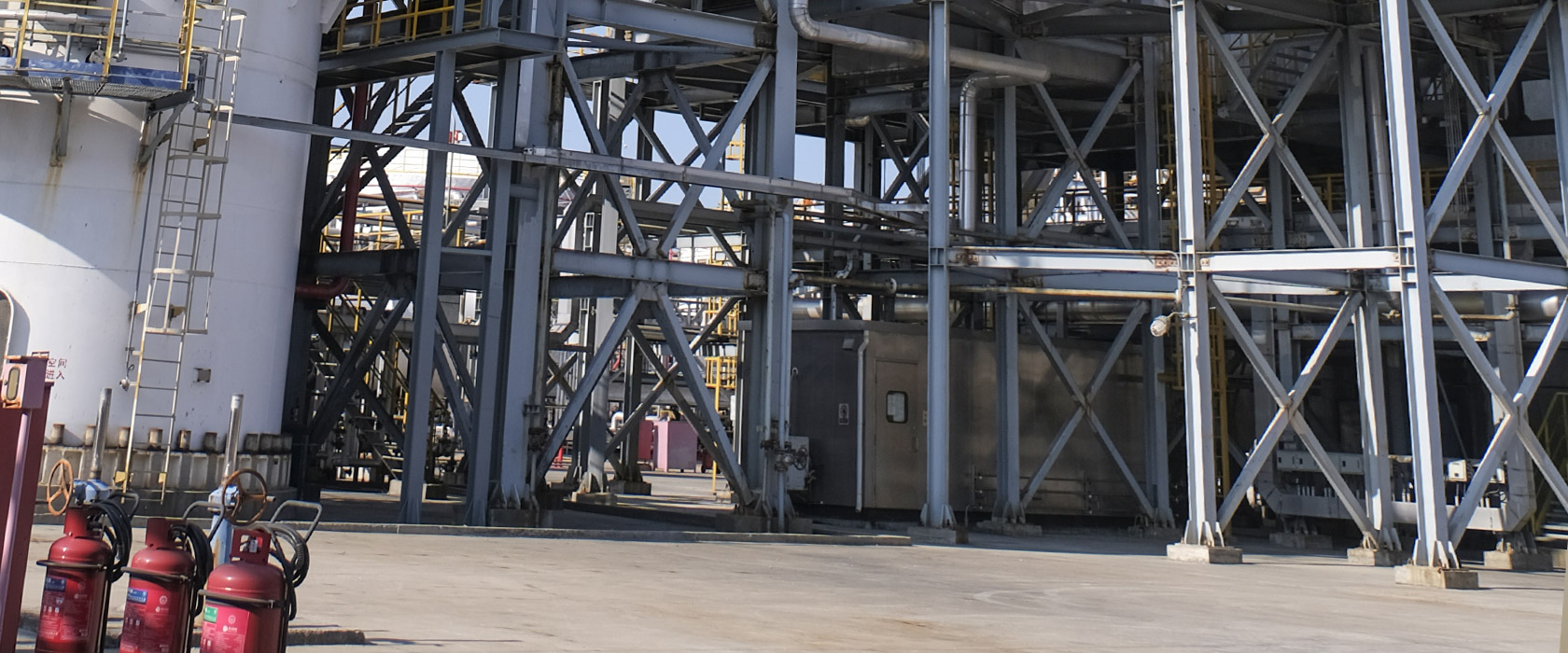

The analyzer house is used in the production of oil refining, chemical industry, metallurgy, pharmacy and light industry to provide safe installation space and protection for various process gas on-line analyzers and various on-line water quality analyzers.

ANKONG SOLUTION

在线分析小屋系统组成

分析小屋主体部分

The main body is double-layer internal and external structure, and the shell is welded with high-quality steel plate or stainless steele
主体双层内外结构，外壳采用优质钢板或不锈钢焊接成型

声光报警系统

Including sound and light alarm, with emergency explosion-proof anti-corrosion plastic fluorescent lamp / LED lamp
包括声光报警器，带应急的防爆防腐全塑荧光灯/led灯

室内危险气体监测系统

Including explosion-proof combustible gas detector, explosion-proof toxic gas detector and explosion-proof oxygen detector
包含防爆可燃气体探测器，防爆有毒气体探测器，防爆氧气探测器

配套电源系统

Matching power supply system: Including instrument power supply system, public power supply system, UPS emergency power supply system
包括仪表电源系统，公用电源系统，UPS应急电源系统
